Insert the foil – Place the model – Start the program

Everything else will be done by the Erkopress motion

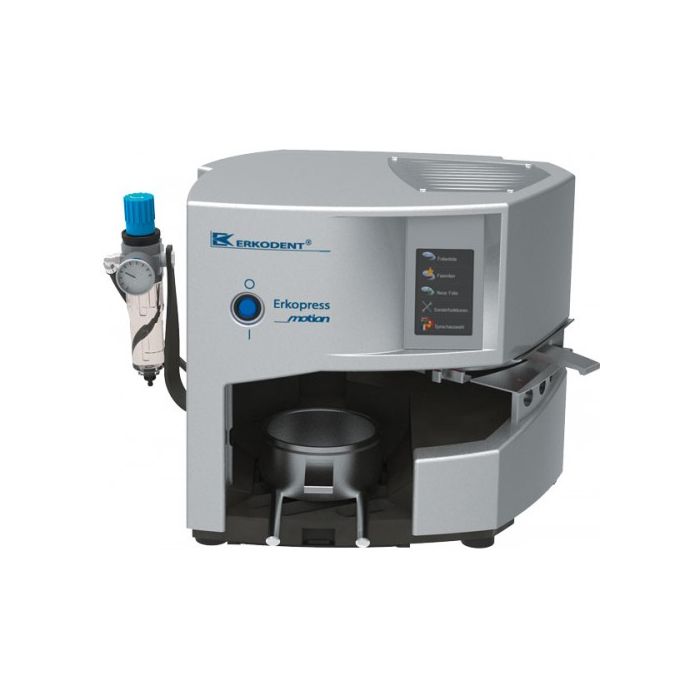

The Erkopress motion is the first pressure thermoforming unit with an automated process to control the thermoforming process – the longest working step – making it unnecessary to monitor the heating and cooling cycles and removing the need to manually move the hot foil to the model

Features

Completely automated thermoforming process
Patented sensor exactly determines the actual temperature of the thermoforming material
The hot foil is formed vertically onto the model for uniform thicknesses
The adaption of the foil takes place without delay when the cylinder is engaged
Outstanding workplace safety with automatic switch-off function and pinch protection
Medium-wave infrared heating without the need for a preheating time
Easily accessible model during heating period.
Acoustic and visual signals during operation
Touchpanel control of functions with animations leading the workflow at each stage
Connects to your air system, regulator and water separator included
Accessories: Polimerisation Flask

Warranty: 2 Years

Technical data:

Foil thickness 0 – 5.5mm

H 32 cm/W 33 cm/D 52 cm

Weight app. 20.9 kg

Operating pressure: 6 bar

Operating voltage: ~220 – 240 volts, 50 – 60 hertz,

Wattage: 380 watt

Noise level <70 db(a)
